Name: SKYCUT A3 MAX 7-Pro
Brand: SKYCUT
SKU: A3MAX7-Pro
Availability: InStock

A3 MAX 7-Pro Specifications

Specification	A3 MAX 7-Pro
Model	A3 MAX 7-Pro
Maximum Material Width	370mm
Maximum Cutting Width	350mm
Positioning Method	Vision Camera (Auto Contour Following)
Control Method	Touch Screen
Motor	Digital Drive Motor System
Maximum Blade Pressure	L:2000g R:1000g
Number of Tool Heads	2
Cutting Accuracy	+/-0.01mm
Repeatability / Repeat Accuracy	0.082mm
Power	135W
Maximum Cutting Speed	1800mm/s
Machine Dimensions	798 × 455 × 332mm
Automatic Blade Adjustment	Supported
Connection Method	Wi-Fi, USB, Ethernet Port
Operating Ambient Temperature	+5°C~+35°C

Product Description

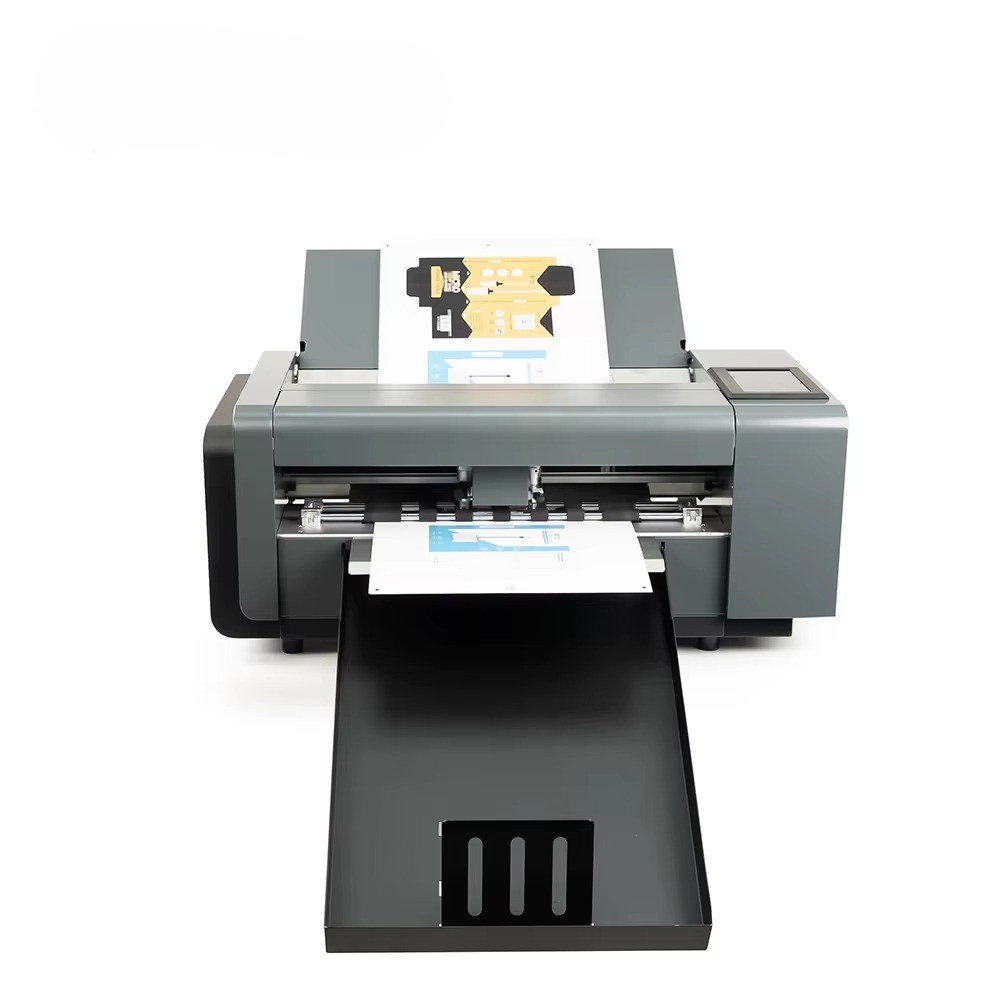

1. The A3 MAX 7-Pro is made for carton samples. It creases with a wheel and the tool heads adjust themselves, so you can make box samples faster.

2. You can cut and crease in one pass. Simple to use, and you don’t need two machines.

3. The digital drive motor helps the cutter run faster and stay smooth.

4. You can add tiny hold points (0.1mm, adjustable) while cutting. Pieces stay put, speed stays the same, and leftover bits peel off easily.

Key Features

Crease carton samples and boxes on the same machine you cut with.

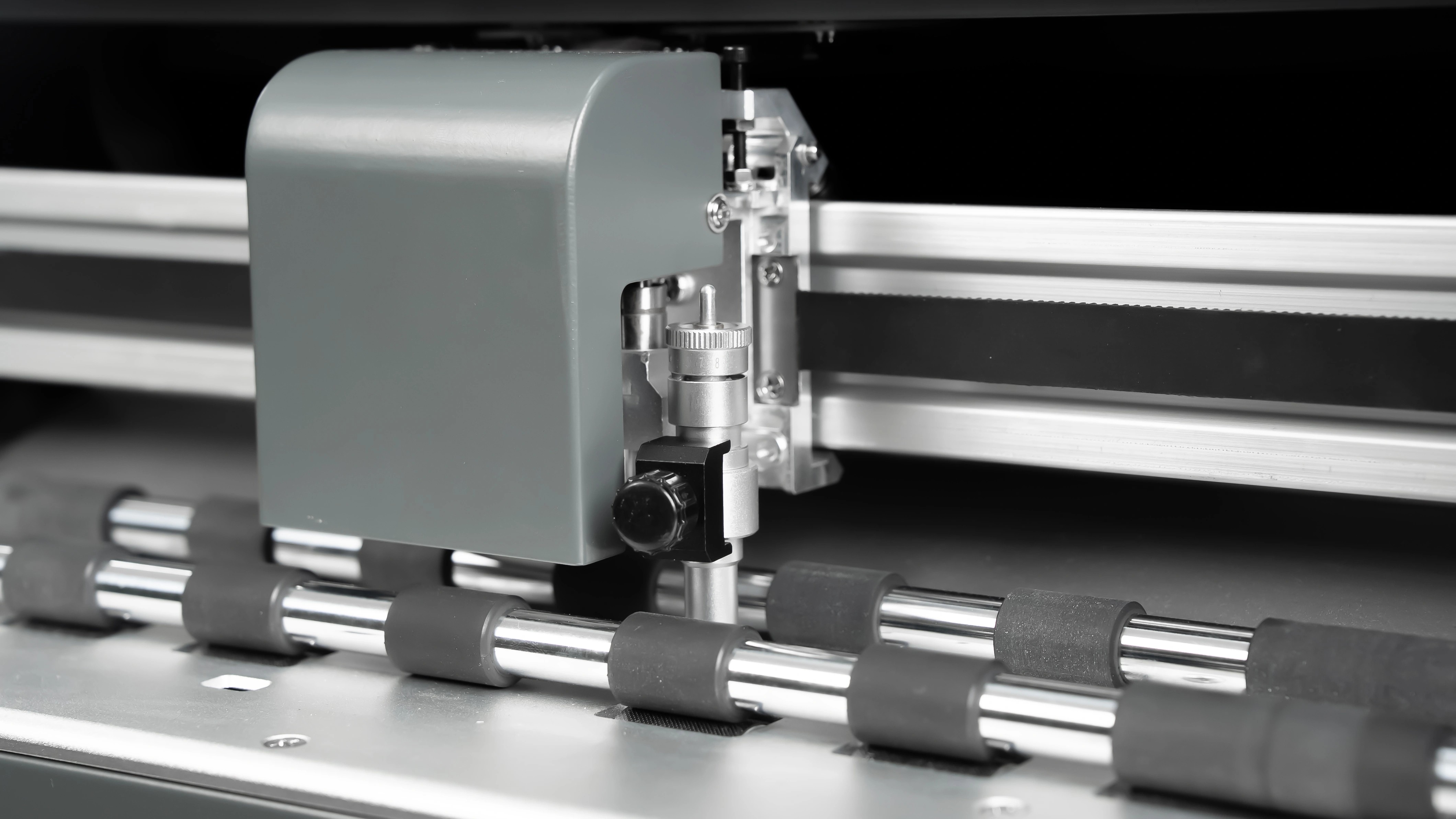

The blade sets itself. Two heads: 2000g on the left and 1000g on the right.

Leaves tiny hold points so pieces don’t fall out while cutting. Easy to peel later.

Helps the machine cut faster, up to 1800mm/s, with a camera that follows the print.
