The Skycut A3 MAX 4 PRO is a premium cutting and creasing machine designed for high-volume sticker cutting, box making, packaging design, and contour cutting applications. Equipped with a servo motor, rotary creasing tool, dual heads, and a high-precision camera, it offers unmatched cutting accuracy and production efficiency.
1. Large touch screen that is easy to use without any analog button system.
2. Assembling tray helps you assemble sheets in a proper systematic manner.
3. 3000G cutting force for cutting vinyl, cardstock, EVC and more.
4. Multi-language support, multi-color LED for night vision working.
| Specification | A3 MAX 4 PRO |
|---|---|
| Model | A3 MAX 4 PRO (Dual Head) |
| Type | Auto Feeder Cutting & Creasing Machine |
| Max Cutting Width | 370 mm |
| Contour Cutting Size | 350 mm |
| Creasing Tool | Rotary Tool |
| Number of Heads | 2 Nos (Dual Head) |
| Auto Contour Cut | Camera System |
| Max Cutting Speed | 1600 mm/s |
| Motor Type | Servo Motor |
| Max Force | 3000 g |
| Cutting Precision | 0.01 mm |
| Connector Interface | USB / Wi-Fi / Ethernet |
| Compatible Software | CorelDraw, Adobe Illustrator, AutoCAD, Inkscape |
| Voltage | 110V / 220V AC, 50/60 Hz |
| Power Consumption | ≈ 150W |
| Dimensions (L×W×H) | 780 × 570 × 530 mm |
| Weight | ≈ 50 kg |
Auto Feeding System — Faster and More Stable
Double Row Roller — Save Materials with 5MM Margins

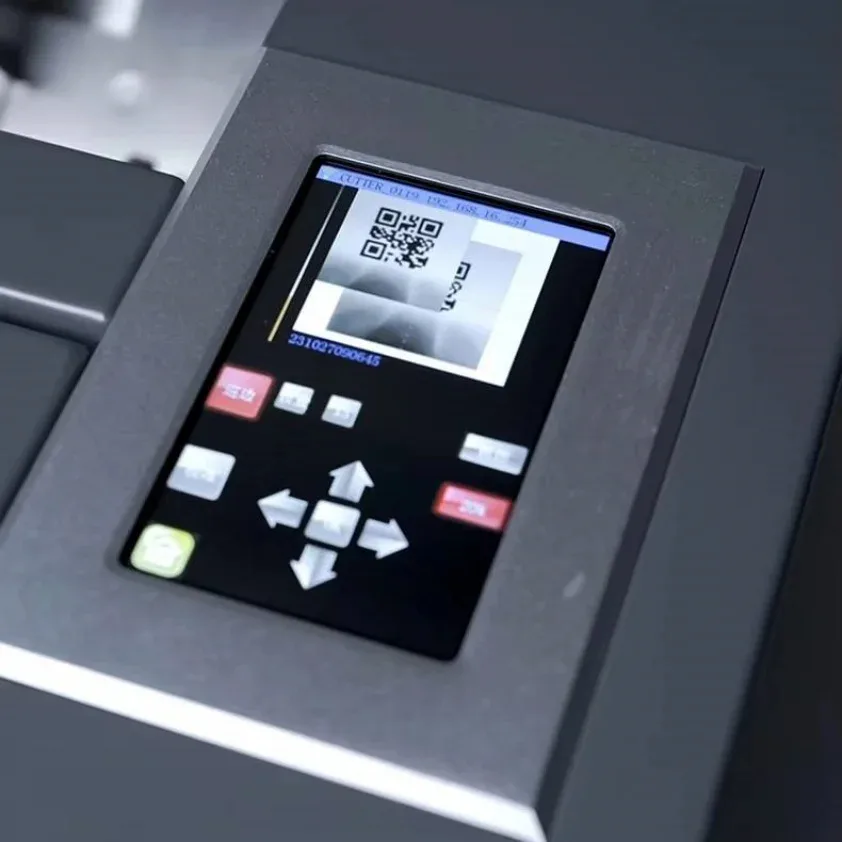

Large Colorful Touch Screen with Concise UI
High Display Quality with Extra Features
