Product Description

1. Advanced 10-inch HD touch screen with AI-powered user interface for intuitive operation.

2. Intelligent assembling tray with automatic sheet positioning and alignment system.

3. 3500G cutting force for cutting vinyl, cardstock, EVC, leather, fabric and more materials.

4. Multi-language support, RGB LED lighting system with advanced night vision capabilities.

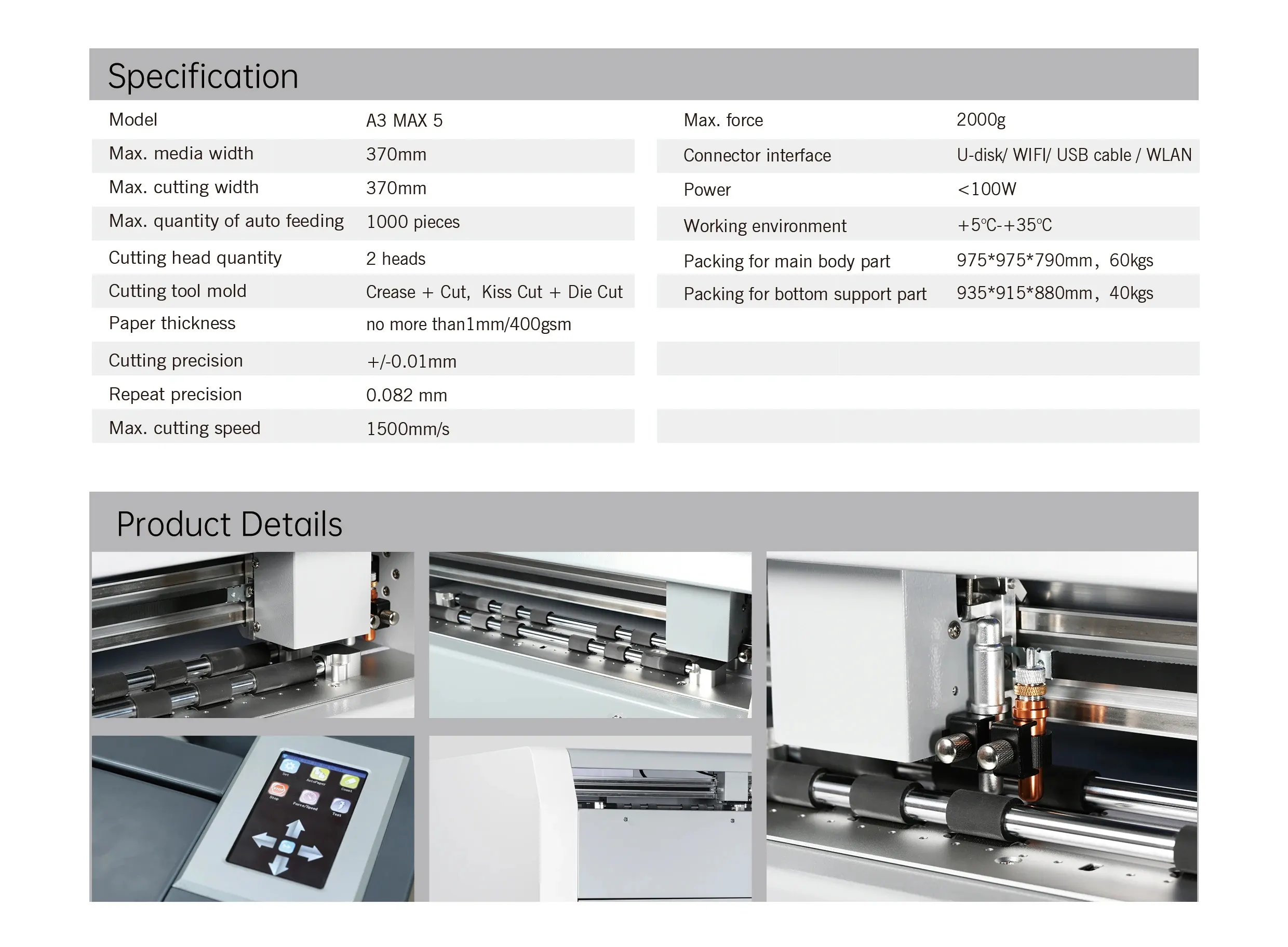

Technical Specifications

SPECIFICATION	A3 MAX 5 PRO
Brand Name	Skycut
Model	A3 MAX 5 PRO (Advanced Dual Head)
Type	Advanced Auto Feeder Cutting & Creasing Machine
Max Cutting Width	370 mm
Contour Cutting Size	350 mm
Creasing Tool	Advanced Rotary Tool
Number of Heads	2 Nos (Optimized Dual Head)
Auto Contour Cut	Powered Camera System
Max Cutting Speed	1800 mm/s
Motor Type	Enhanced Servo Motor
Max Force	3500 g
Cutting Precision	±0.01 mm
Connector Interface	USB / Wi-Fi / Ethernet / Bluetooth
Compatible Software	CorelDraw, Adobe Illustrator, SignMaster
Display	5-inch HD Touch Screen
Voltage	110V / 220V AC, 50/60 Hz
Power Consumption	≈ 200W
Dimension (L×W×H)	820 × 600 × 560 mm
Weight	≈ 55 kg
