Skycut FR6090 Flatbed

Dual Head Vacuum Table Industrial Flatbed Cutting Machine

Availability:

In Stock

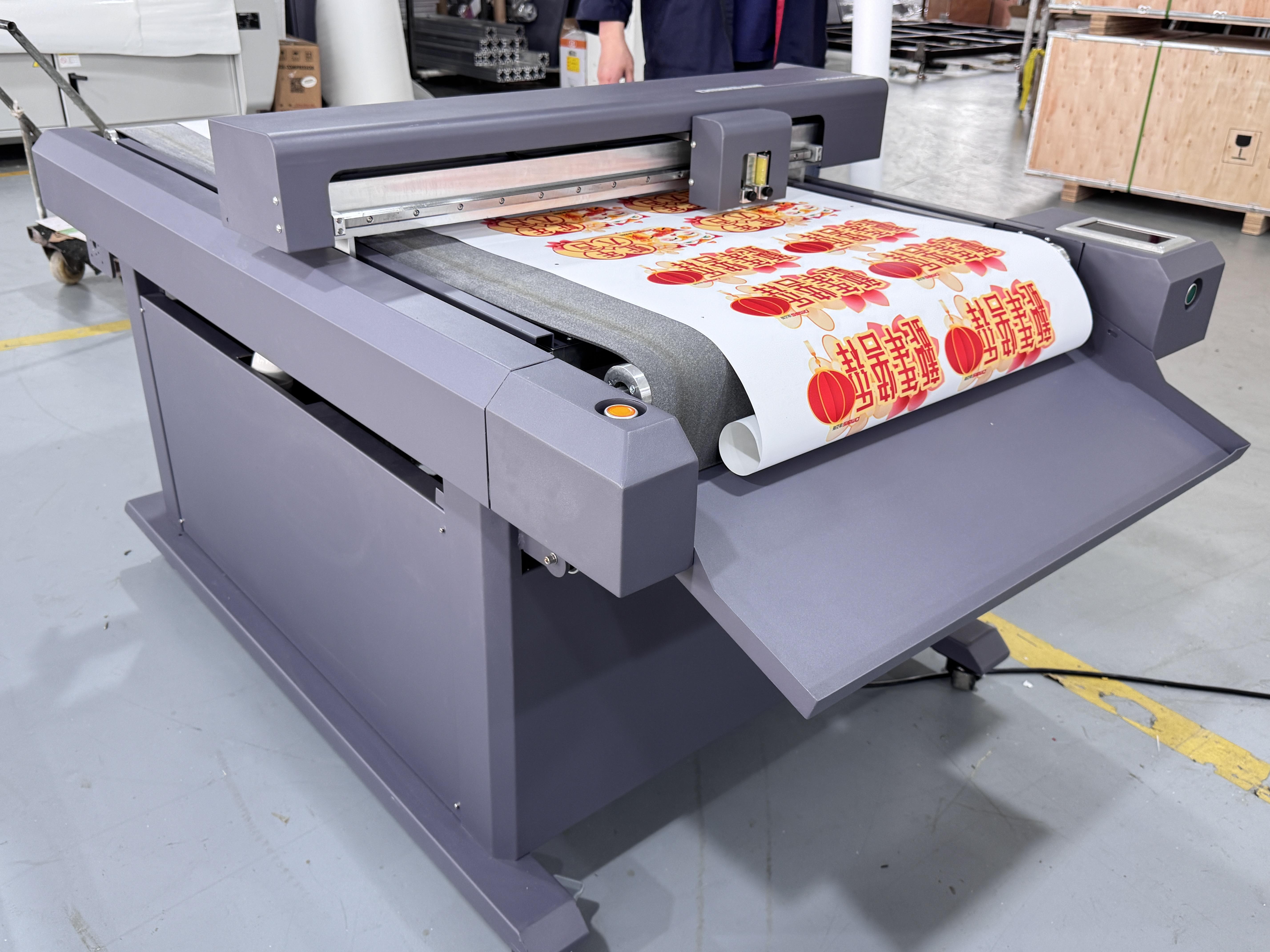

The Skycut FR6090 Flatbed is a powerful dual‑head flatbed cutting machine engineered for industrial‑grade precision. Equipped with a large 600×900 mm cutting area, strong vacuum table, 2000g cutting force, auto contour cutting support, and a reliable DC stepper motor system. Ideal for packaging, sample making, vinyl, gasket sheets, foam boards, leather, and fabric.

You Tube

Download

Product Description

1. Advanced 10-inch HD touch screen with AI-powered user interface for intuitive operation.

2. Intelligent assembling tray with automatic sheet positioning and alignment system.

3. 3500G cutting force for cutting vinyl, cardstock, EVC, leather, fabric and more materials.

4. Multi-language support, RGB LED lighting system with advanced night vision capabilities.

Technical Specifications

SPECIFICATION	DETAILS
Brand Name	SKYCUT
Model	SKYCUT FR6090 Flatbed Plotter
Motor	DC Stepper Motor
Control Panel	5-Inch Touch Screen
Number of Tool	DUAL HEAD
Working Area Size	630 × 1200 mm
Maximum Material Placement Size	600 × 900 mm
Maximum Cutting Speed	800 mm/s
Maximum Cutting Pressure	2000 g
Repeatability Accuracy	±0.01 mm
Cutting Accuracy	0.025 mm
Connection	Wi-Fi / USB / LAN Cable
Camera	Supported
Automatic Feeding	Supported
QR Code Recognition	L Corner, Dot
Applicable Cutting Materials	Cardstock, Heat Transfer Film, Self-Adhesive Paper, Kraft Paper, PVC, PET
Input Power	100–240V AC, 50/60Hz
Power Consumption	Main Unit: 150W / Fan: 1500W
Operating Temperature	5°C – 35°C
Overall Machine Size	1770 × 1000 × 980 mm
Overall Machine Weight	200 kg

Premium Features

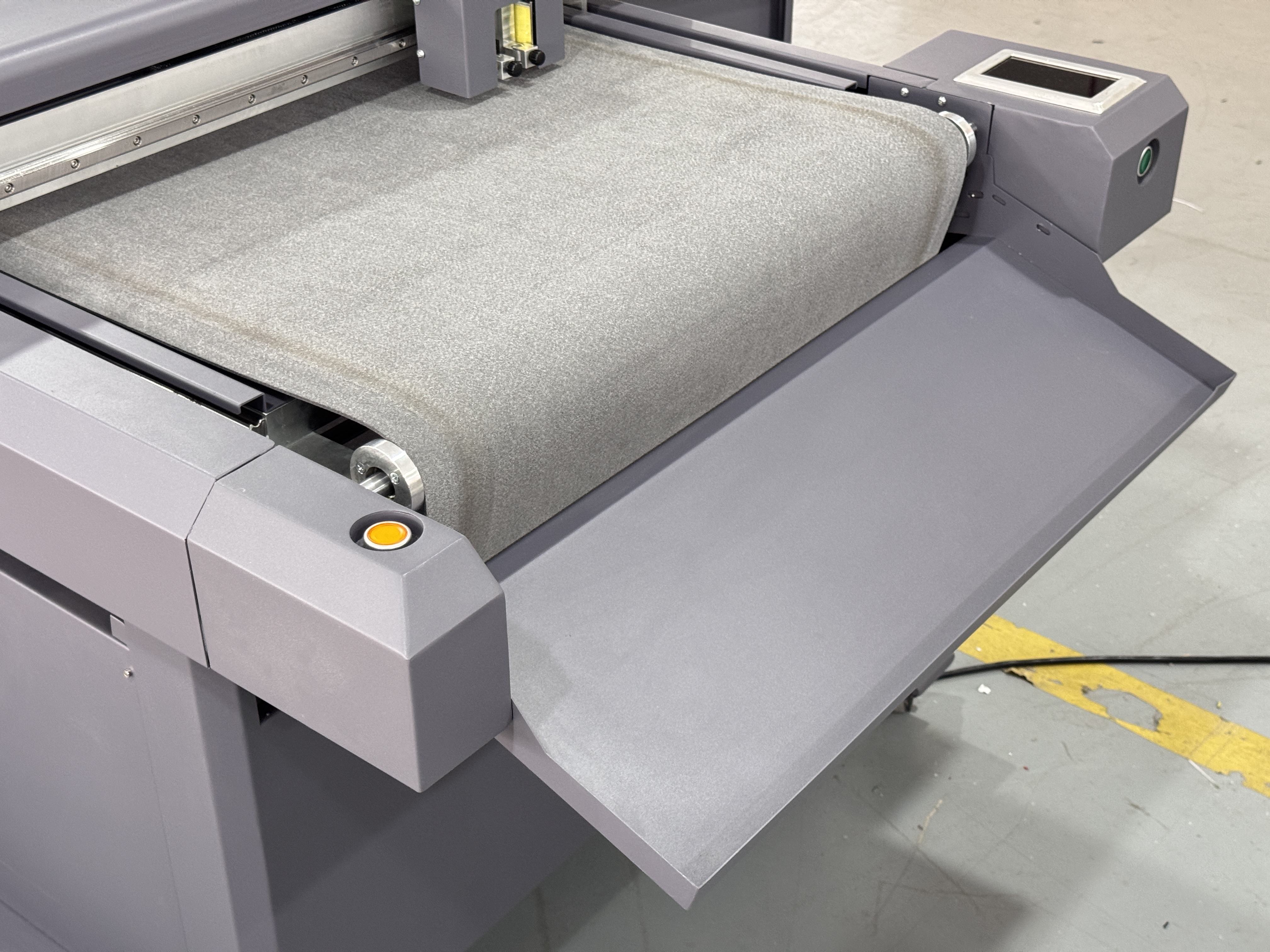

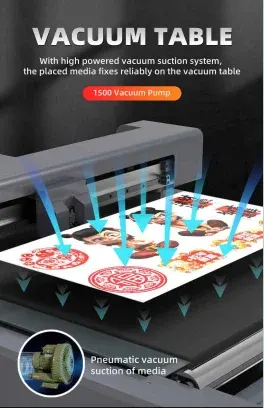

High-Power Vacuum Table — Media Holds Firm & Flat

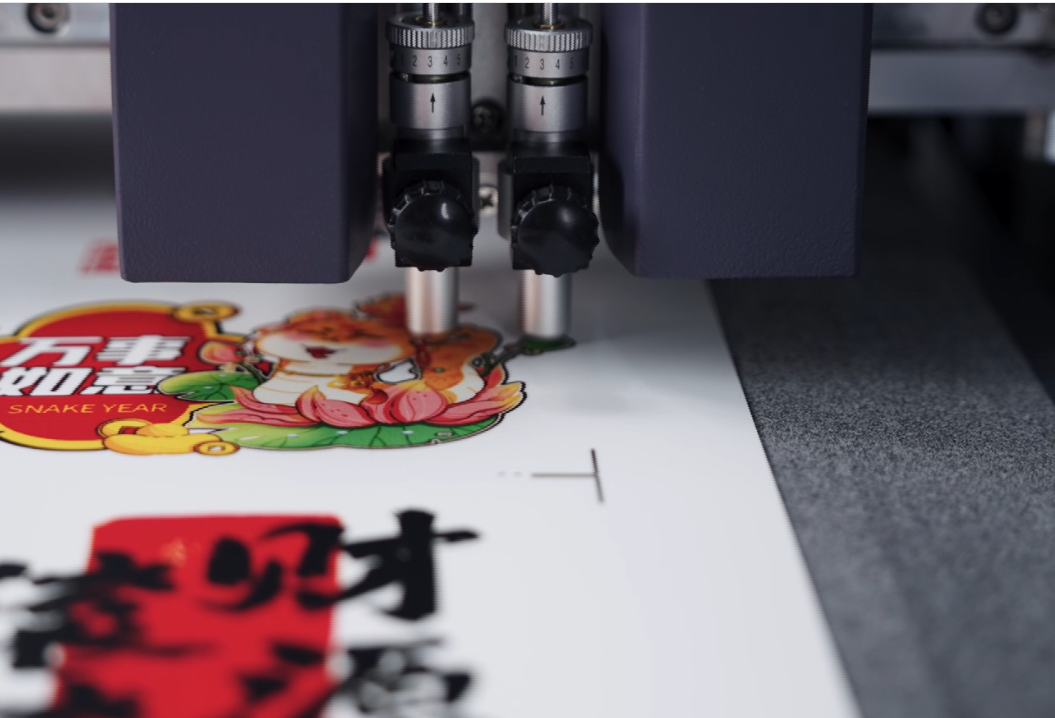

Dual Independent Heads — Cut & Crease in One Pass

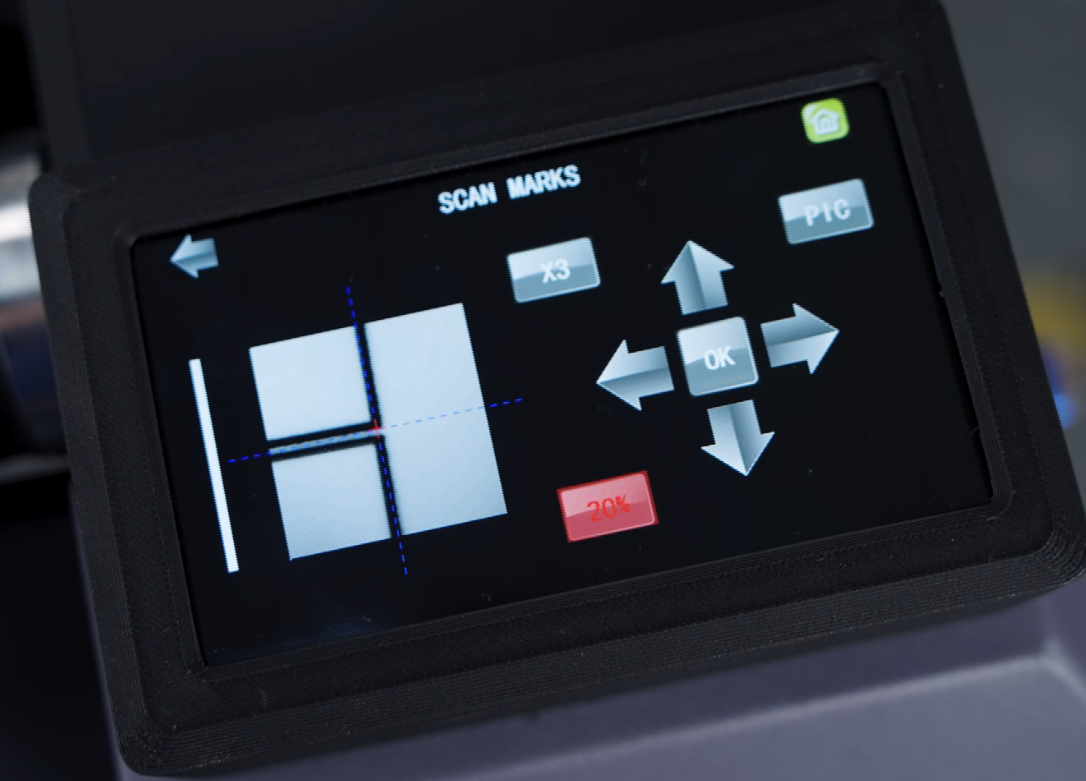

5-inch Touch Screen with Scan Marks Contour UI

600×900 mm Flatbed — Auto Contour & High Accuracy
